Precision Injection Mold for Small High-Cavity Remote Control Housings

As a high-frequency daily interaction terminal, a remote control's shell texture, button feedback, and seam uniformity collectively form the critical “finger-tip experience.” The consistency of this experience relies on the Precision Injection Mold for Small High-Cavity Remote Control Housings behind it—a compact assembly concentrating extreme precision and stability.

Ningbo Weishuo deeply understands the core demands of consumer electronics components: ensuring ultimate quality while achieving maximum production efficiency. Our remote control molds embody precision, efficiency, and reliability. Facing stringent appearance and assembly requirements, we achieve exceptional macro-level product experiences through micro-level machining and control. Choosing us means selecting stable quality and cost advantages backed by precision molds for mass production.

Products:

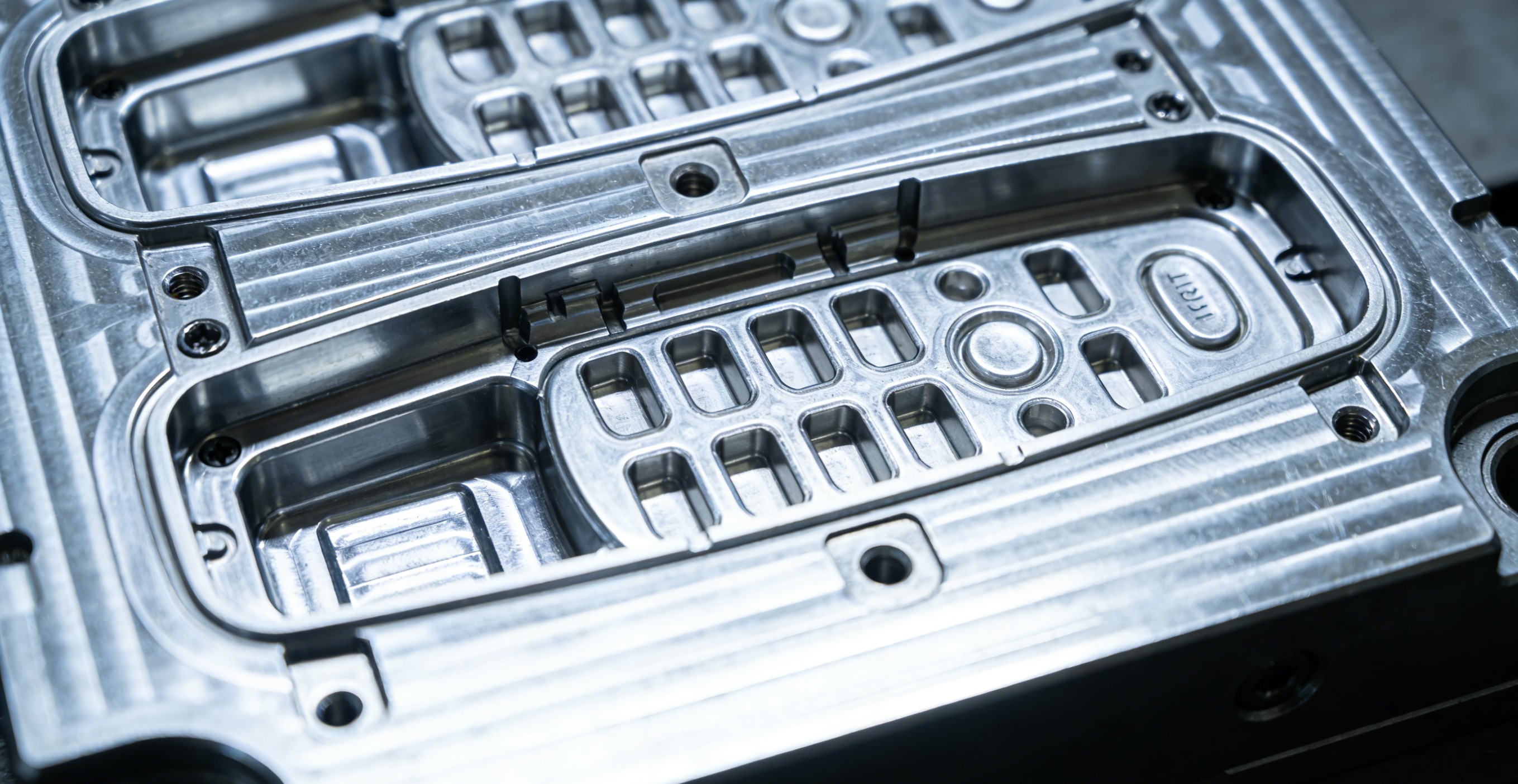

Cavity Processes for Refined Appearance and Precise Tactility

Challenge: The shell surface must achieve high gloss, fine matte, or specific anti-slip textures without any weld lines, flow marks, or ejection marks. Keyhole openings must be smooth and burr-free to ensure seamless button operation.
Solution: Core cavity components utilize high-grade polished steel, achieving A1-grade super-mirror finishes through multi-stage diamond paste polishing or replicating design textures via precision optical etching. Critical areas like key openings and LCD windows undergo mirror-grade polishing and precise interlocking to ensure sharp edges, zero flash, and deliver precise key travel with crisp tactile feedback.

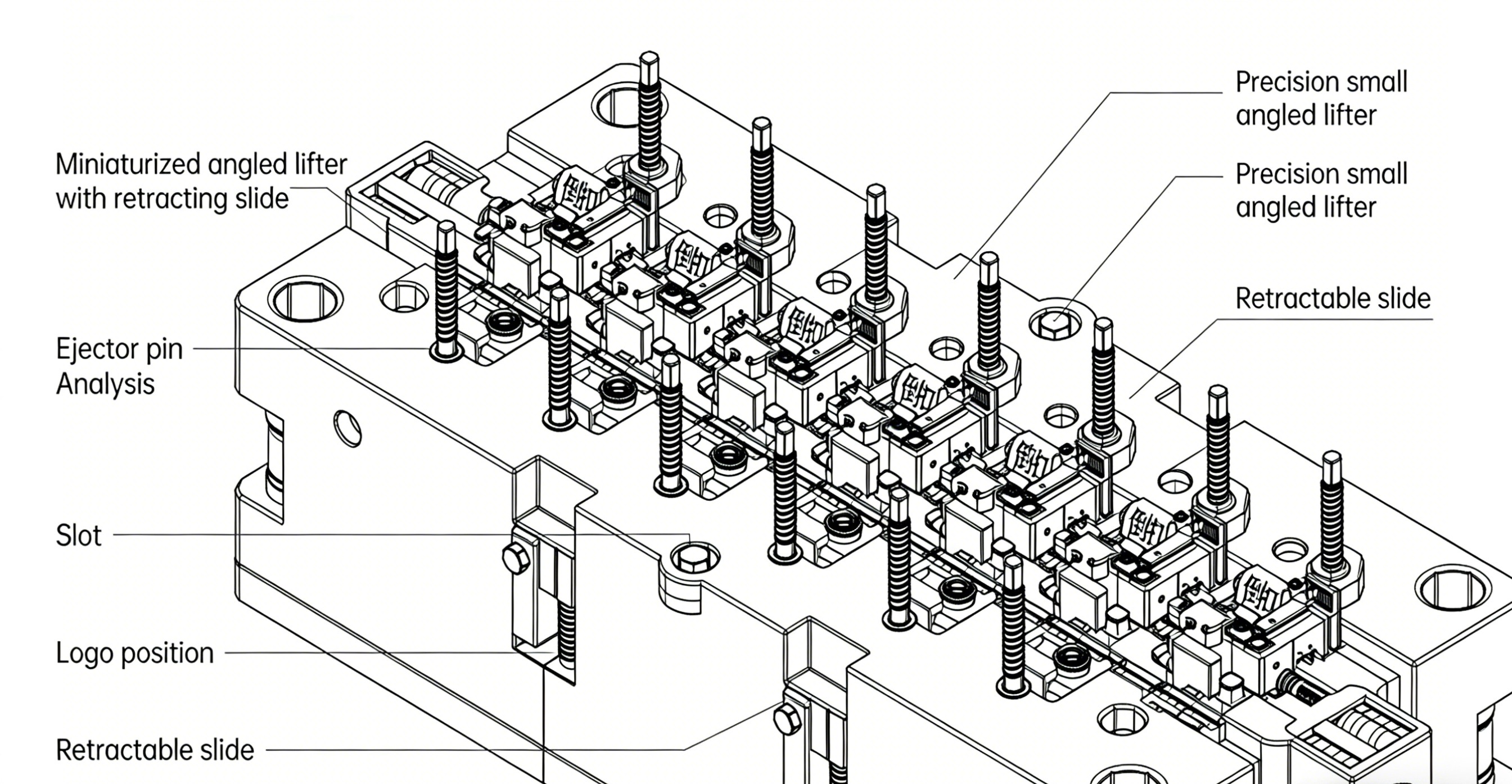

Precision Ejection and Slider System for Damage-Free Complex Structures

Challenge: The interior features densely packed battery compartment latches, PCB positioning pins, and decorative slot mechanisms, creating complex structures prone to flash marks, deformation, or scratches during demolding.
Solution: Design a “multi-group micro-tapered ejector and retractable slider” combination mechanism. Compact precision micro-tapered ejectors address dense internal undercuts and ribs. For side slots or logo positions, retractable slides ensure smooth ejection without product damage. Ejector pin layout undergoes stress analysis to guarantee smooth, balanced ejection.

Frequently Asked Questions (FAQ)

Q1: What is the typical development cycle for a Precision Injection Mold for Small High-Cavity Remote Control Housings?
A1: For high-cavity precision molds, the standard cycle from design freeze to T1 sample delivery is approximately 10-13 weeks. Actual duration depends on cavity count, structural complexity (e.g., internal undercuts), and surface finish requirements (high gloss or special textures). We establish detailed project master schedules.

Q2: How do you ensure consistent weight and dimensions for each part in high-cavity molds?
A2: System balancing is critical. We achieve this through: 1) Mold flow analysis to optimize runner and gate dimensions for balanced flow; 2) High-precision hot runner needle valves and temperature controllers to ensure uniform temperature distribution; 3) Designing efficient, uniform cooling systems. Prior to shipment, we conduct continuous production runs and sample-measure critical dimensions and weights of products from each cavity, verifying consistency through data validation.

Q3: How is the mating gap (step difference) between the remote control's upper and lower covers controlled?
A3: This is the core capability of precision molds. We achieve this through: 1) Precise control of parting line fit accuracy and mold rigidity to prevent flash; 2) Critical mating dimensions for the upper and lower covers are optimized during mold design.
