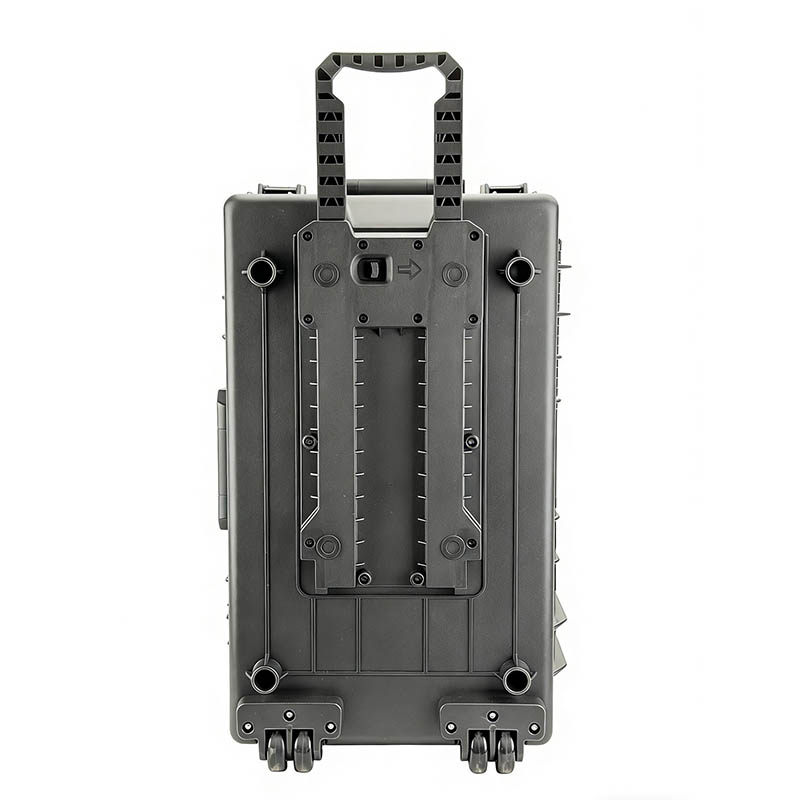

Equipment hard box with telescopic pull rod

WEISHUO's Equipment hard box with telescopic pull rod is specifically developed to solve the challenges of moving medium to heavy equipment. Traditional protective cases are laborious and inefficient to carry manually when the equipment is heavy or the movement distance is long. This product cleverly combines the convenient pull rod design of a suitcase with the reliable performance of a professional protective case. Through the combination of a telescopic pull rod and silent wheels, equipment weighing over 15kg can be moved easily, greatly reducing worker fatigue and improving work efficiency.

Core Functional Systems

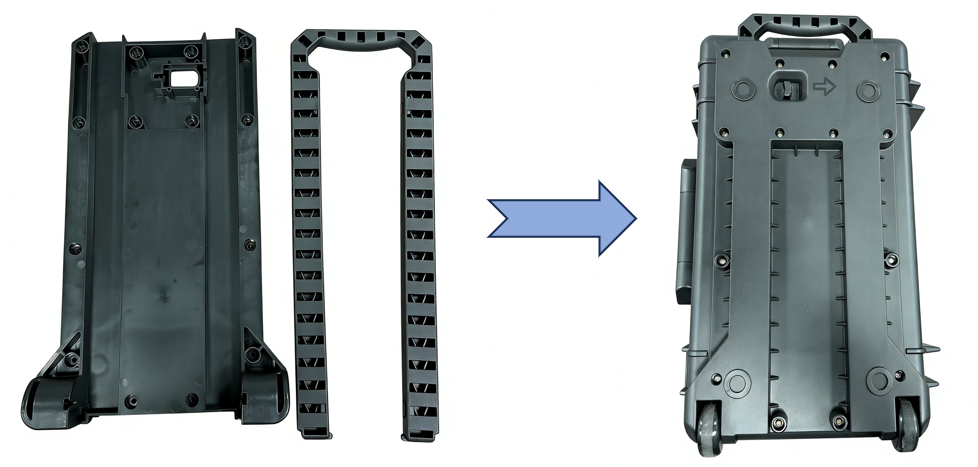

Stretching and retracting rod system
Secure locking: Button-style segmented locking, no wobbling design
Strong load-bearing capacity: The rods can bear up to 50kg and have undergone 100,000 stretching tests
Easy contraction: One-click contraction, fully concealed after contraction

Wheel set system
Molded plastic rollers: Stable for linear movement
Sealed bearings: Dust-proof and water-proof, maintenance-free
Shock-absorbing structure: Built-in spring shock absorption, suitable for uneven roads

Technical Specifications

Basic Parameters
Protection level: IP67 - waterproof and dustproof
Wheel set configuration: Wear-resistant plastic wheels
Box material: Reinforced engineering PP plastic
Size series: 22 inches, 31 inches
Maximum load: 50kg (static)

Application Scenarios

Exhibition and Display Transportation: Transporting exhibits for exhibitions; relocating event equipment to multiple locations; transporting samples for demonstrations; transporting performance equipment
On-site Technical Services: On-site service for large testing equipment; transporting engineering debugging tool kits; relocating maintenance workstations; relocating training equipment to multiple locations
Equipment Rental and Circulation: Frequent handover of rental equipment; multiple customer transfers of testing instruments; multi-location demonstration of demonstration equipment; emergency allocation of spare equipment
Specialized Operation Support: Transfer of medical equipment between patient rooms; relocation of laboratory instruments between rooms; film and television equipment shooting location changes; rapid deployment of emergency equipment.

Product Advantages

Increased Mobility
Effort-saving effect: 80% reduction in carrying force; one person can easily move 30kg equipment.
Speed increase: 2-3 times faster than manual carrying.
Distance breakthrough: Easily achieves long-distance movement of over 200 meters.
Terrain adaptability: Smoothly traverses various road surfaces.

Ease of use
Quick conversion: Lever extension/retraction completed in 3 seconds.
Multiple modes: Freely switch between manual carrying, dragging, and horizontal pushing.
Stable and reliable: No risk of tipping over even when fully loaded.
Space saving: Leverage does not affect stacking storage.

Use and Maintenance

Correct Operation Guide
Load distribution: Place heavy objects as close to the lever side as possible.
Height adjustment: Adjust to elbow height according to height.
Road selection: Prioritize dragging on flat surfaces.
Step handling: Two people work together to lift when encountering steps.

Maintenance & Care
Weekly Inspection: Check wheel rotation smoothness
Monthly Maintenance: Clean axles, check pull rod locking mechanism
Quarterly Maintenance: Check wheel wear, replace if necessary
Annual Inspection: Comprehensive inspection and maintenance of the pull rod system

Quality Assurance

IP67 protection rating certification; pull rod durability test (10,000 extensions/retractions); wheel set life test (100km towing).
