The Professional Choice for Vibration Protection WEISHUO's Built in shockproof sponge hard boxes are designed specifically for precision equipment requiring extreme vibration protection. During instrument transportation, field operations, and daily storage, vibration is one of the main causes of equipment damage and decreased accuracy. Traditional protective cases only provide basic impact protection and are insufficient to effectively isolate high-frequency vibrations and continuous impacts. Our products, by integrating professional-grade shock-absorbing foam liner, add active shock absorption on top of IP67 sealing protection, providing comprehensive protection for your precision instruments, electronic equipment, optical instruments, and other sensitive equipment.
Vibration Damping Sponge System
Sponge Material: High-density flame-retardant polyurethane sponge, density 50-80kg/m³
Damping Coefficient: Vibration Transmission Rate <15% (10-200Hz)
Rebound Performance: Compression Set <5% (50% compression, 22 hours)
Enclosure Basic Parameters
Protection Rating: IP67 waterproof and dustproof
Size Series: 8-inch to 21-inch full range available
Sponge Thickness: 20-50mm (selectable according to equipment sensitivity)
Operating Temperature: -30℃ to +70℃ (Sponge applicable temperature -40℃ to +100℃)
Optional Colors: Multiple sponge colors available for easy equipment classification and management
Multi-layer shock absorption structure
Contact layer: 3mm soft sponge to prevent hard contact from scratching the equipment
Buffer layer: 15-30mm high-elasticity sponge to absorb the main impact energy
Isolation layer: 10mm slow-rebound sponge to filter high-frequency vibration
Support layer: Self-supporting housing structure to ensure overall rigidity
Sponge Performance Parameters
Compression Strength: >15kPa at 25% Deformation
Rebound Time: <3 seconds to recover 95% after 50% compression
Damping Coefficient: 0.15-0.25 (Optimal Shock Absorption Range)
Aging Performance: >90% performance retention after 70℃×7 days of aging
Standard Configuration Options

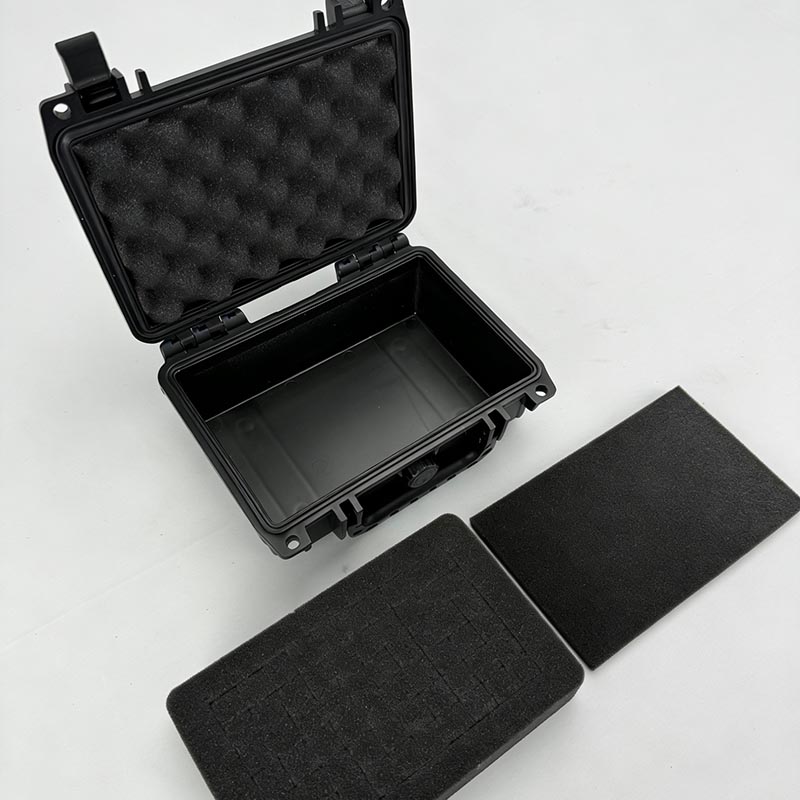

Universal Mesh Sponge: Tearable and adjustable, adaptable to various small tools
Wave Eggshell Sponge: Pre-formed protective layer, suitable for irregular items

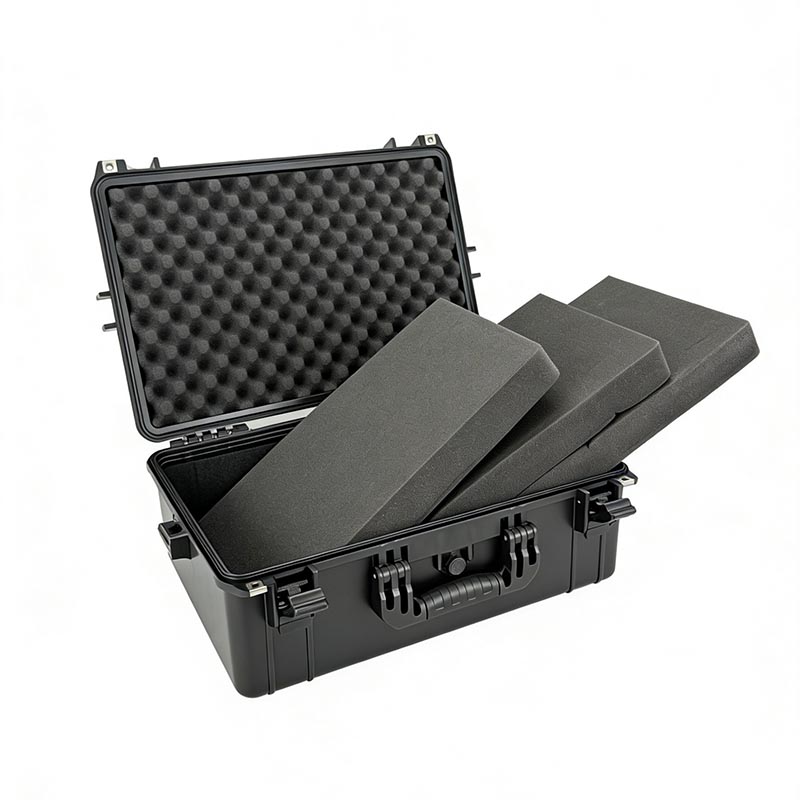

Flat Sponge: Flat overall surface, user-cuttable
Modular Lining: Combination of sponges of different densities for optimized protection
Professional Customization Process
Equipment Measurement: Provide equipment 3D dimensions or physical samples
Die-cutting Design: Engineers design the optimal sponge cutting scheme
Sample Confirmation: Produce sample sponges for customer testing
Mass Production: Mass die-cutting after confirmation, accuracy ±1mm
Installation Guidance: Provide detailed installation instructions and videos
Precision Instrument Protection

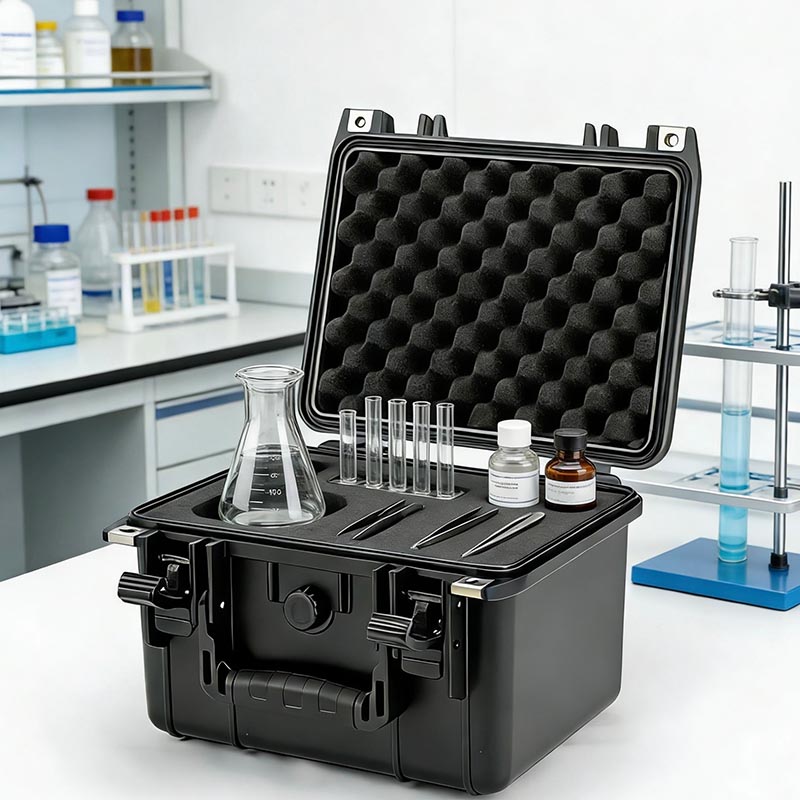

Laboratory Analytical Instruments: Spectrometers, Chromatographs, Microscopes
Electronic Testing Equipment: Oscilloscopes, Signal Generators, Network Analyzers
Optical Equipment: Lens assemblies, Lasers, Optical Platforms

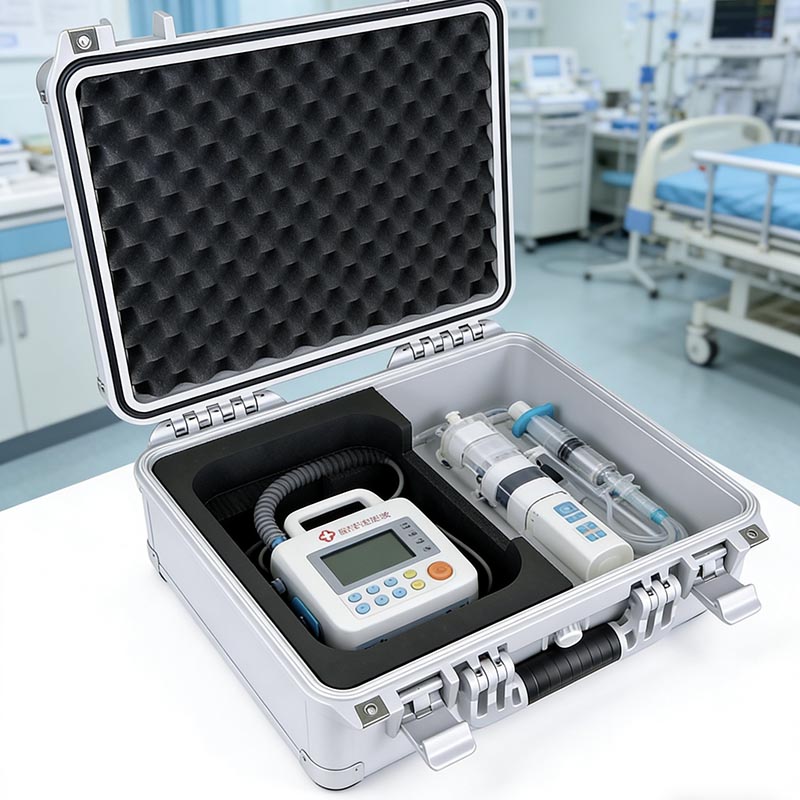

Medical Instruments: Portable Ultrasound, Monitors, Diagnostic Equipment
Industrial Equipment Protection
Industrial Control Equipment: PLCs, Touch Screens, Servo Drivers
Measuring Instruments: Coordinate Measuring Heads, Sensors, Calibrators
Field Equipment: Data Acquisition Devices, Testing Instruments, Recorders
Repair Tools: Precision Tools, Calibration Tools, Special Tools
Special Field Applications

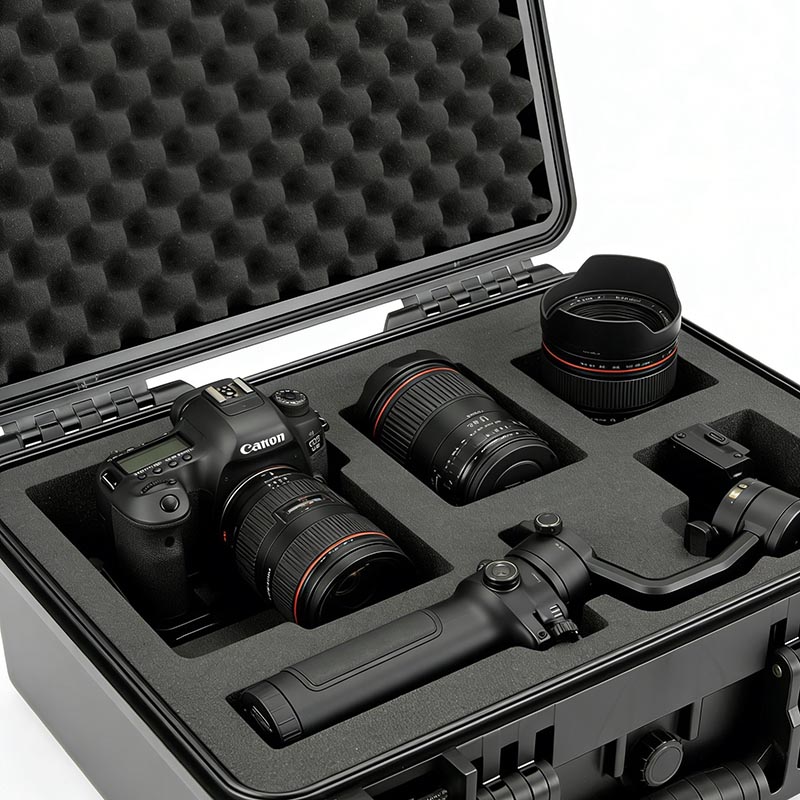

Film and Television Equipment: Cameras, Lenses, Stabilizers
Artwork Transportation: Sculptures, Ceramics, Glassware
Military Equipment: Reconnaissance Instruments, Communication Equipment, Navigation Systems
Scientific Research Samples: Biological Samples, Chemical Reagents, Geological Specimens
| Comparison Dimension | Ordinary Protective Case | Protective Case with Built-in Shockproof Foam | Improvement in Protection Effect |
| Vibration Protection | Almost no protection | Professional shock absorption design | 85% reduction in vibration transmission |
| Impact Absorption | Relies on case structure | Active buffer absorption | 70% reduction in impact peak value |
| Equipment Fixation | Simple separation | Perfect fit and fixation | 90% reduction in displacement |
| High-Frequency Vibration | No filtration | Effective isolation | 95% attenuation of high-frequency vibration |
| Long-Term Protection | Prone to chronic damage | Sustained and effective protection | 50% extension of equipment service life |
Correct Usage: Place the equipment in the customized foam box according to its shape; ensure the equipment and foam are completely fitted together, with no gaps. Place heavier equipment on the lower foam layer; check that no objects are pressing on the sealing strip before closing.
Sponge Maintenance
Daily Cleaning: Wipe with a soft cloth; avoid using organic solvents.
Regular Inspection: Check the sponge's elasticity recovery monthly.
Deep Cleaning: Disassemble and clean quarterly; allow to air dry.
Lifespan Assessment: Replace if the recovery time after compression is >5 seconds.
Sponge Replacement Service: Standard sponges have a lifespan of 3-5 years (depending on usage intensity); original factory sponge replacement service is provided.
Old sponge recycling is supported; replacement cycle recommendation: evaluation every 3 years.
Q1: Will shock-absorbing sponges age and harden? What is their lifespan?
A1: Under normal use conditions, the performance degradation of high-quality polyurethane sponges is <15% within 3-5 years. It is recommended to check every 3 years and decide whether to replace them based on usage intensity.
Q2: What should I do if the sponge gets damp?
A2: Our sponges are hydrophobic; slightly damp sponges can be air-dried naturally. If severely soaked, it is recommended to disassemble and thoroughly dry them, and replace them if necessary. An antibacterial version is available to prevent mold growth.
Q3: How to customize sponges for irregularly shaped equipment?
A3: Please provide the actual equipment or precise 3D drawings. Our engineers will design the optimal cutting plan to ensure that every protruding part of the equipment is protected.
Q4: How to verify the shock absorption effect of the sponge?
A4: We offer three verification methods: 1) Simple test: Drop test with a raw egg placed inside the box; 2) Professional test: Measuring the transmission rate using a vibration tester; 3) Actual verification: Testing the accuracy after actual transportation of the equipment.
Q5: Minimum order quantity and customization period?
A5: Minimum order quantity for standard liner models is 20 pieces, and minimum order quantity for customized sponge liners is 50 pieces. Customization period: Delivery within 15-20 working days after sample confirmation.
WEISHUO's Built in shockproof sponge hard box protects precision with softness and professionally resists vibration. We not only provide containers, but also create a safe and stable microenvironment for your sensitive equipment.
