In the realm of Hot runner precision control system molds, traditional cold runners resemble uncontrollable rivers—inevitably generating scrap, energy loss, and quality fluctuations. In contrast, hot runner systems represent the precise art of “fluid sculpting”—ensuring molten plastic remains in optimal condition before reaching the mold cavity. This core technology enables zero scrap, short cycles, and high-quality production. However, the soul of an exceptional hot runner mold lies not merely in its hot runner components, but in the deep understanding, design, integration, and control capabilities of the hot runner system.
Ningbo Weishuo elevates hot runner technology to a strategic level. We are not merely mold makers, but engineers and managers of plastic flow behavior. Through deep collaboration with the world's leading hot runner brands and leveraging our robust in-house mold flow analysis (CAE) capabilities, we deliver customized design and system integration. We are committed to transforming every hot runner mold into a stable, efficient, and intelligent “micro chemical plant,” ensuring near-perfect product output from the first shot to hundreds of thousands of shots.
1. Multi-Zone Independent Precision Temperature Control Technology
Challenge: Complex products with significant wall thickness variations across zones require distinct temperature compensation for shrinkage; Thermosensitive materials (e.g., PC, PMMA) exhibit extreme sensitivity to temperature fluctuations.
Solution: Implement “independent temperature control per nozzle” or even “multi-segment nozzle temperature control” systems. Utilize high-response, high-stability heating coils and thermocouples, combined with PID adaptive algorithms, to strictly control temperature fluctuations at each control point within ±0.5°C, providing the fundamental thermal environment assurance for high-quality molding.
2. Dynamic Pressure and Sequence Control System
Challenge: Uneven filling across cavities in multi-cavity molds, or products requiring specific filling sequences to eliminate weld lines and ensure strength.

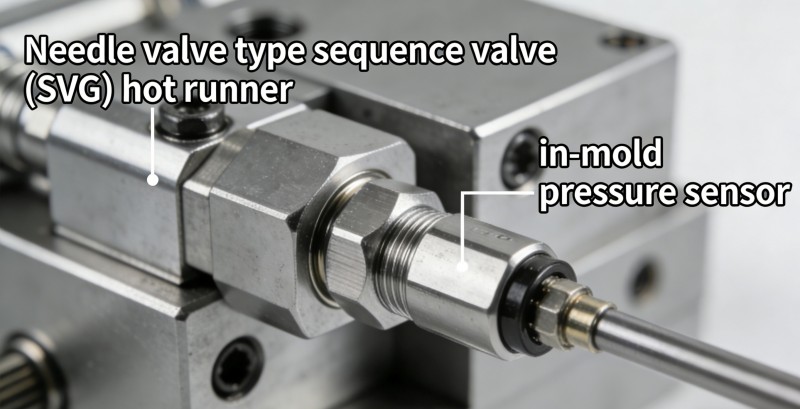

Solution: Integrate “sequential valve gate (SVG) hot runners” with “in-mold pressure sensors.” Programmatically control each valve gate's opening sequence and stroke to actively guide melt flow paths. Combined with real-time cavity pressure feedback to adjust injection parameters, achieving true Scientific Molding.
Challenge: Improper runner design causes plastic overheating/degradation (yellow lines, black spots) or excessive filling pressure loss.
Solution: Based on mold flow analysis, conduct rheological optimization of runner diameter, transition angles, and nozzle aperture. Ensure smooth runner walls, controllable shear heating, and minimized flow resistance. For degradation-prone materials, employ specialized nozzles with large apertures and small taper angles.
Challenge: Hot runner system failures (e.g., heater damage, thermocouple malfunction) are difficult to predict, often leading to batch scrap.
Solution: Integrate a hot runner system health monitoring module into the mold, enabling real-time monitoring of current, resistance, power, and ground insulation status for each circuit. Data is uploaded to the MES system via an Industrial Internet of Things (IIoT) interface, enabling predictive maintenance. Early warnings are issued before failures occur, eliminating unplanned downtime.
| Comparison Dimension | Traditional Cold Runner Molds | Ningbo Weishuo Hot Runner Precision Control Molds | Core Value Created for Customers |
| Material & Energy Consumption | Generates 15%-40% runner scrap requiring recycling and grinding, with high energy consumption. | Approximately zero scrap, directly conserving virgin materials while reducing energy and labor costs. | Significantly lowers material cost per unit, supporting green manufacturing and sustainability goals. |
| Forming cycle | Molding Cycle Long cooling time (requires cooling runners), large mold opening/closing stroke. | Cycle time reduced by 15%-30%, no runner ejection, enabling high-speed continuous production | Enhances equipment capacity and utilization, accelerates ROI, and improves order responsiveness |
| Product Quality | Prone to gate marks and flow lines, significant consistency fluctuations in multi-cavity products. | Aesthetic gate appearance (no marks or minimal marks), low internal stress, excellent dimensional stability and consistency. | Enhances product grade and yield rate, meets the most stringent appearance and performance requirements, reduces customer complaints. |
| Automated Production | Requires handling runner material, may interfere with robotic arms, high automation complexity. | Seamlessly integrates with fully automated production lines, maintains a clean production environment, enables “unmanned” production. | Simplifies production processes, advances smart manufacturing capabilities, and reduces overall management costs. |
Precision Electronics & Connectors: Multi-pin, fine-pitch products requiring zero flash and minimal molding stress.
Optical & Lighting Components: Lenses, light guides, etc., demanding no flow marks, no ripples, ultra-high light transmittance, and dimensional accuracy.
Medical and Packaging Devices: Thin-walled containers, test tubes, etc., requiring sterility, contamination-free properties, high strength, and sensitivity to residual stress.
Premium Aesthetic Components: Automotive interiors, appliance panels, etc., demanding Class A surfaces free of weld lines, sink marks, or any defects.
5. Our Service Process: From Thermal Analysis to Stable Mass Production

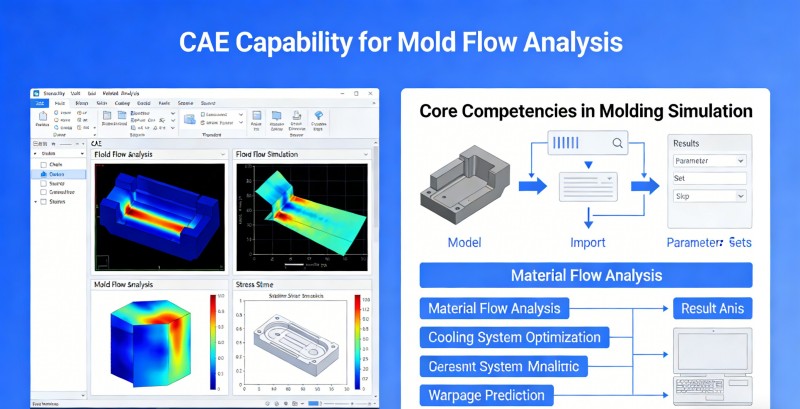

1. In-depth Mold Flow Analysis (CAE): Conduct comprehensive hot runner system simulations prior to mold design to predict filling, holding pressure, cooling, warpage, and shear heat, optimizing nozzle layout and dimensions.
2. System Selection & Custom Design: Based on analysis results and product characteristics, select or customize the most suitable hot runner brand and model (pin valve/open, large nozzle/micro nozzle).
3. Integrated Design and Precision Machining: Centered around the hot runner system, we perform holistic mold design integrating structure, cooling, and venting, ensuring high-precision installation tolerances during machining.
4. On-site Thermal Balancing and Process Optimization: Hot runner specialists collaborate with injection molding engineers for meticulous on-site tuning of temperature, pressure, and timing to establish the optimal process window.
5. Long-Term Technical Support & Data Services: Provide ongoing maintenance guidance and troubleshooting support for hot runner systems, along with critical process data reports during production.
Q1: Hot runner molds require higher initial investment. How do you calculate their Return on Investment (ROI)?
A1: ROI calculation requires comprehensive consideration: 1) Material Savings: Annual raw material cost reduction; 2) Efficiency gains: Additional output from reduced cycle times; 3) Yield improvement: Cost savings from reduced scrap; 4) Post-processing savings: Eliminated labor and energy costs for grinding and drying runner material. Typically, for high-volume production, expensive raw materials, or products with stringent quality requirements, the additional investment in hot runner molds can be recouped within 6-18 months. We can provide a detailed ROI analysis model.
Q2: Are hot runner systems more prone to leakage (dripping) or clogging?
A2: Risks are extremely low through precise design and control. Leakage primarily stems from insufficient nozzle-to-mold fit accuracy or temperature instability, which we address via precision machining and closed-loop temperature control. Clogging often results from improper temperature settings causing material degradation or incorrect shutdown procedures. We establish standardized SOPs for startup, shutdown, and material changeover, and recommend using dedicated hot runner cleaning compounds for regular maintenance to ensure long-term system flow.
Q3: Are hot runner molds suitable for products requiring frequent color changes?
A3: Yes, but requires a scientific approach. During frequent color changes, residual material within the hot runner system must be completely purged. We recommend adopting a “rapid color change hot runner” design, such as employing torpedo-style nozzles with strong color-change capability and optimizing the surface finish of runner walls. Additionally, we provide validated, efficient color-change procedures to minimize changeover time and material waste.
Q4: Which hot runner brands do you primarily partner with? Can you accommodate our preferred brand for existing equipment?
A4: We maintain stable partnerships with brands including YUDO (Hot Tech). We can recommend the most suitable brand based on your product requirements, budget, and existing equipment interfaces. We are also fully capable of integrating other specified hot runner systems to ensure seamless compatibility between the mold and your factory equipment.
